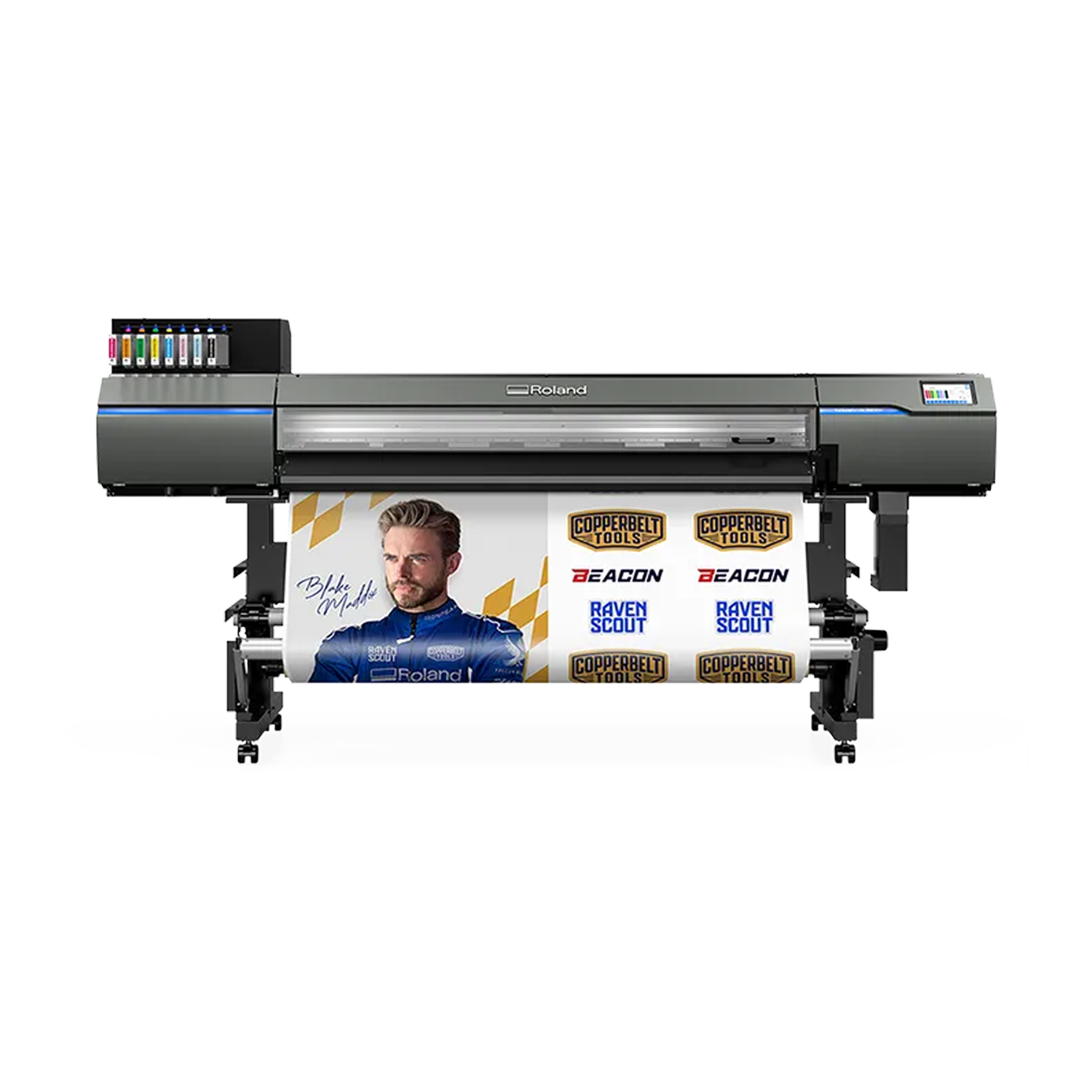

Roland TrueVIS XG-640

• Roland DG’s most productive integrated printer/cutter to date – nearly twice as fast as the VG3-640.
• Advanced dual staggered printheads allow for top print speeds of up to 819 sqft/hr.
• Exceptional vibrancy with new TR3 eco-solvent inks, available in dual CMYK or expanded gamut 8-color configurations including Orange, Green, and White options.
• Enhanced usability with a 7-inch touch panel, automatic media gap adjustment, and other cutting-edge features designed to simplify operations.

Printing method Piezo ink-jet method

‍MediaWidth 13.2 to 64 in.(335 to 1,625 mm)

‍Thickness Max. 39.3 mil (1.0 mm) with liner, for printing

Max. 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting

‍Roll outer diameter 9.8 in. (Max. 250 mm)

‍Roll weight Max. 99 lb. (45 kg)

‍Core diameter 3 in. (76.2 mm) or 2 in. (50.8 mm)

‍Printing/cutting width (*1) Max. 62.9 in. (1,600 mm)

‍InkType Eco-Solvent Ink (TR3) 500 ml cartridge (only white 220 ml)

‍Colors Eight colors (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Orange, and Green)Seven colors (Cyan, Magenta, Yellow, Black, Orange, Green, and White (2 cartridges))Four colors (Cyan, Magenta, Yellow, and Black)

‍Printing resolution (dots per inch) Max. 1,800 dpi

‍Cutting speed 0.39 to 11.8 in/s(10 to 300 mm/s)

‍Blade force (*2) 30 to 500 gf

‍BladeType Roland CAMM-1 series blade

‍Offset 0.0 to 59 mil(0.000 to 1.500 mm)

‍Software resolution (when cutting) 0.98 mil/step(0.025 mm/step)

‍Media heating system (*3) Print heater set temperature: 86 to 113 °F (30 to 45 °C)Dryer set temperature: 86 to 131 °F (30 to 55 °C)

‍Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)

‍Power-saving function Automatic sleep feature

‍Rated input 100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A

‍Power consumption

During operation Approx. 1,180 W

‍Sleep modeApprox. 50 W

‍Acoustic noise level

During operation 66 dB (A) or less

‍During standby 56 dB (A) or less

‍Dimensions (Width x Depth x Height) 113.7 in. x 29.5 in. x 55.8 in.(2,886 mm × 748 mm × 1,415 mm)

‍Weight 433 lb. (196 kg

‍EnvironmentDuring operation (*4)Temperature: 68 to 89.6 °F (20 to 32 °C),Humidity: 35 to 80 % RH (no condensation)

‍Not operatingTemperature : 41 to 104 °F (5 to 40 °C),Humidity：20 to 80 % RH (no condensation)

‍Included items Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc.

‍

Hospital Wall Graphics

‍Print hospital wall graphics that are not only visually stunning, but also safe enough for use in the most sensitive health settings.

School Wall Graphics

‍Enhance the educational experience with environmentally friendly wall graphics that inspire, stir the imagination, and spark creativity.

Supermarket Wall Graphics

‍Produce bright, colorful graphics that freshen up supermarket walls and create a warm and inviting experience for shoppers.

Labels and Stickers

‍Add your unique style to a variety of packaging with labels and stickers that feature your specific brand.

Fabric and Fine Art

‍Safely print vibrant designs for interior home decoration applications.

Floors and More

‍Extend your designs to multiple surfaces with graphics that make your customers feel welcome.

Vehicle Graphics

‍Print brilliantly colored, detailed vehicle graphics with latex inks that dry instantly and allow for quick job turnaround.
