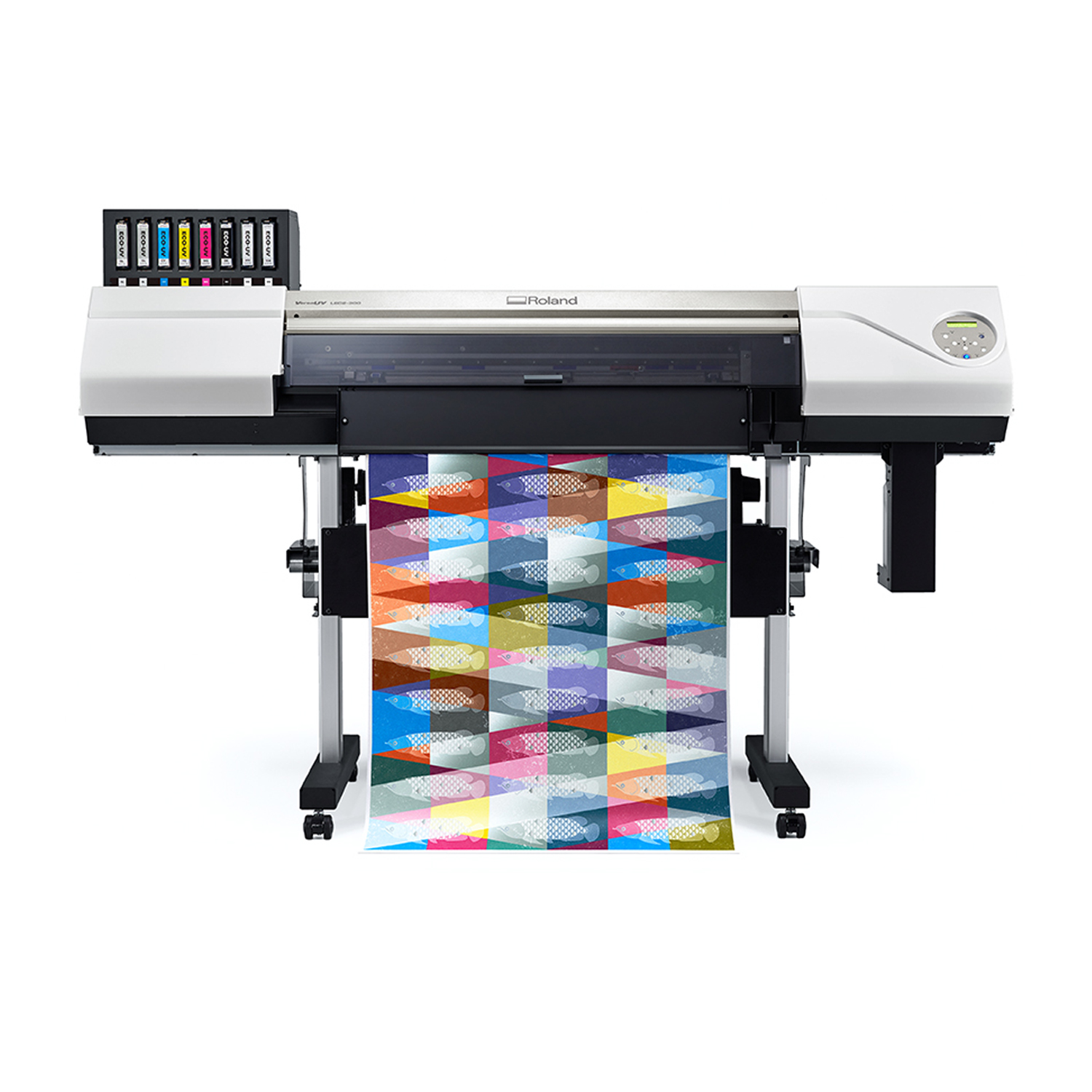

Roland VersaUV LEC2-300 UV Printer Cutter
A streamlined and affordable UV printer/cutter that offers high-quality print results.
*Large Box, cannot ship Air
*This item cannot ship to Non-US destinations
The streamlined VersaUV LEC2-300 is an affordable UV printer/cutter that offers high-quality print results. Versatile and highly-productive, it does the job of multiple devices by directly printing, cutting, creasing and embossing onto card, film and other materials in one seamless workflow.
- Save money and space with the ideal print/cut solution for stickers, cartons, packaging, signage and more
- True Rich Color quality for unmatched vibrancy, color reproduction and detailed image quality
- Dual CMYK options or CMYK with White and Gloss ink for 3D textures, simulated embossing and spot finishes
Add a Whole New Dimension of “Touch and Color”
With CMYK plus Gloss and White ink options, add embossed effects and 3D textures to labels, decals, packaging and press prototypes. Develop your own 3D textures or choose from seventy-two, ready-to-use textures in our Roland Texture System Library.
Cut, Crease and Perforate with One Versatile Machine
Print, crease and automatically contour cut in one seamless operation to quickly produce die-cut, folded, and perforated graphics. Create graphics without the need for post-trimming with precision cutting that leaves ultra- crisp results.
High Density, Fast Curing Ink
While fast-curing LED lamps increase productivity and produce high quality images, updated printheads offer precision ink delivery and control. The LEC2-300 also features a HD (High Density) ink mode to increase the White ink density on base coats.
Smart, User-Friendly Printing
Traditional die-cut and packaging production is complicated. The LEC2-300 is a single machine that uses a digital workflow to simplify the process. It also provides continuous print features like a nozzle mask function that allows you to turn off a nozzle band that’s clogged or misfiring.
Safe, Convenient and Clean
The space-efficient LEC2-300 offers a safe and clean user environment. It provides low-emission GREENGUARD Gold certified inks and a Detect Waste Liquid Bottle Level function to alert you to when the waste bottle needs emptying to prevent spills.
Impressive Media Compatibility
The LEC2-300 offers consistently smooth and brilliant print quality on a wide range of materials, including very thin media and actual production stock— enabling you to create realistic press proofs and prototypes.
LEC2-300Printing methodPiezo ink-jet method
MediaWidth7.2 to 30 in. (182 to 762 mm)
ThicknessMax. 1.0 mm (39 mil) with liner, for printing
Max. 0.4 mm (16 mil) with liner and 0.22 mm (9 mil) without liner, for cutting
Roll outer diameterMax. 8.3 in. (210 mm)
Roll weightMax. 55 lb. (25 kg)
Core diameter (*1)3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width (*2)Max. 29 in. (736 mm)
InkTypeECO-UV (EUV4) 220 ml cartridge
ColorsSix colors (gloss + gloss, CMYK, white + white)Four colors (CMYK x2)
Ink-curing unitBuilt-in UV-LED lamp
Printing resolution (dots per inch)Max. 1440 dpi
Cutting speed0.4 to 11.8 in/s (10 to 300 mm/s)
Blade force (*3) 30 to 500 gf
BladeTypeRoland CAMM-1 series blade
Offset0.0 to 59.1 mil (0.000 to 1.500 mm)
Software resolution (when cutting)0.98 mil/step (0.025 mm/step)
Distance accuracy (when printing) (*4) (*5)Error of less than ±0.3% of distance traveled or ±11.8 mil (±0.3 mm), whichever is greater
Distance accuracy (when cutting) (*4)Error of less than ±0.4% of distance traveled or ±11.8 mil (±0.3 mm), whichever is greater
When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance traveled or ±3.9 mil (±0.1 mm), whichever is greater
Repeatability (when cutting) (*4) (*6)±3.9 mil (±0.1 mm) or less
Alignment accuracy for printing and cutting (*4) (*7)±19.7 mil (±0.5 mm) or less
Alignment accuracy for printing and cutting when reloading media (*4) (*8)Error of less than ±0.5% of distance traveled, or ±0.2 in. (±3 mm), whichever is greater
ConnectivityEthernet (10BASE-T/100BASE-TX, automatic switching)
Power-saving functionAutomatic sleep feature
Power requirementsAC 100 to 240 V ±10%, 8.0 A, 50/60 Hz
Power consumptionDuring operationApprox. 270 W
Sleep modeApprox. 40 W
Acoustic noise levelDuring operation63 dB (A) or less
During standby53 dB (A) or less
Dimensions (with stand)76.1 [W] × 31.3 [D] × 51.3 [H] in. (1,934 (W) × 795 (D) × 1,303 (H) mm)
Weight (with stand)262.4 lb. (119 kg)
EnvironmentDuring operationTemperature: 59 to 90°F (15 to 32°C),Humidity: 20 to 80%RH (no condensation)
Not operatingTemperature: 41 to 104°F (5 to 40°C),Humidity: 20 to 80%RH (no condensation)
Included itemsDedicated stand, power cord, blade, blade holder, media clamps, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User's Manual, etc.
